Hexagon Absolute Arm 7-Axis 8540 CMM

Pre-owned Hexagon 8540 7-Axis 3D Laser Scanning & Probing Arm delivers top-tier 3D measurement capabilities for rapid high-accuracy touch probing and non-contact laser scanning.

Included:

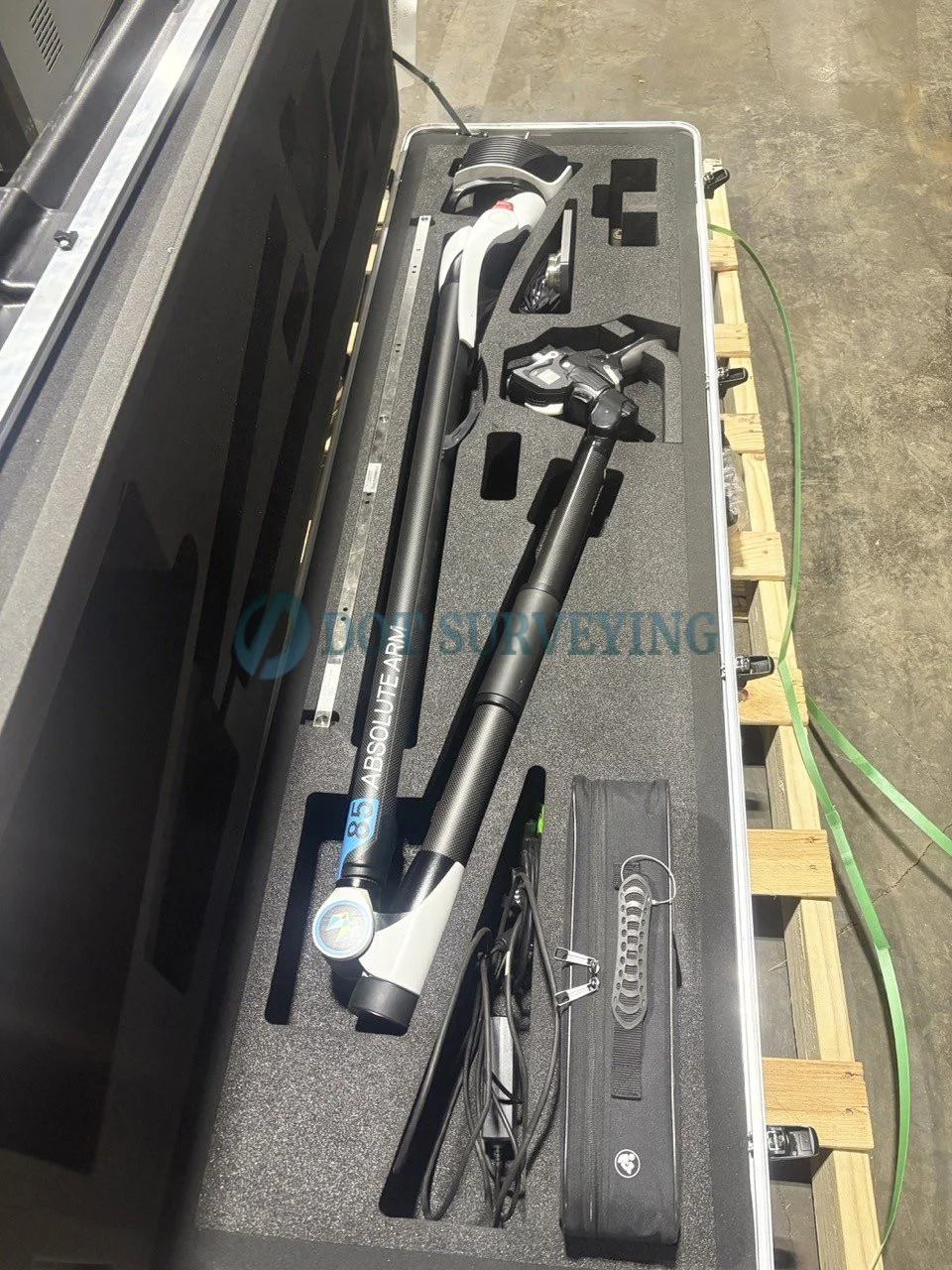

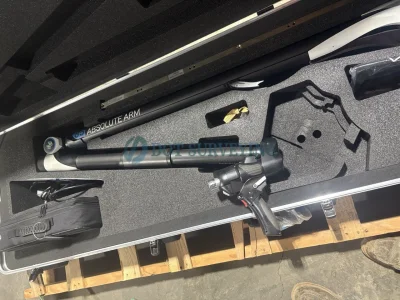

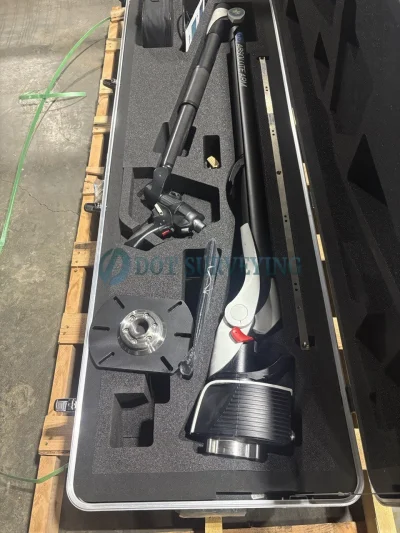

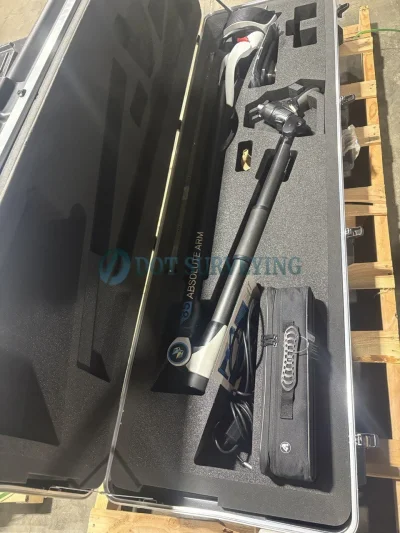

• Hexagon Metrology Absolute Arm 8540 (7-Axis) Portable CMM

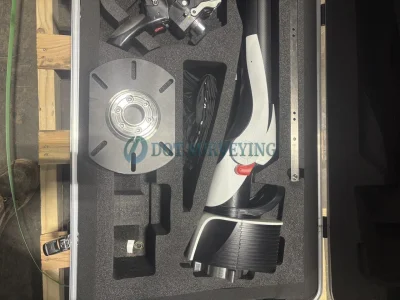

• Hexagon AS1 Absolute Scanner 3d laser Kit
• CP-C Installed

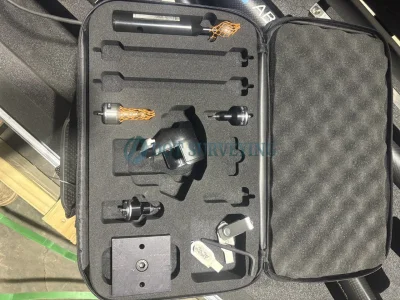

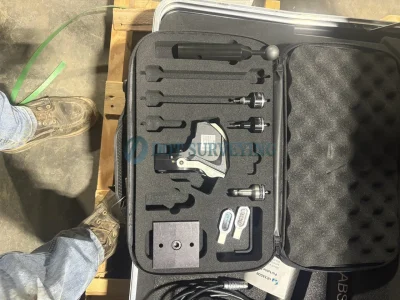

• Magnetic Base with Mounting Ring

Specifications:

• Manufacturer: Hexagon Metrology
• Model: Absolute Arm 8540 – 7-Axis Portable Measuring Arm
• Year: 2022
• Type: Portable Coordinate Measuring Machine (CMM)
• Axes: 7-Axis articulating arm system for tactile probing and 3D scanning
• Measurement / Reach: Arm length ~157″ (approx. 4.0 m) measurement volume (typical for 8540 range)

Designed for high-end industrial inspection, reverse engineering, and CAD-to-part comparison, this 7-axis portable coordinate measuring machine (CMM) combines ergonomic mobility with uncompromising accuracy across its massive 4.0-meter measuring envelope.

Equipped with absolute encoders that eliminate warm-up times and homing routines, the 8540 model allows operators to start measuring immediately upon setup. Its 7-axis movement offers full rotational freedom, making it easy to maneuver tactile probes or laser scanners around complex workpieces and tight angles without repositioning the base.

Key Features

• 4.0-Meter Measuring Range: Accommodates large-scale components, assemblies, and fabrications in a single setup.
• 7-Axis Articulation: Ergonomically balanced 7-axis wrist movement designed for effortless, fluid probing and seamless integration with non-contact laser scanners.
• Absolute Encoders: Immediate system startup without encoder reference passes or homing routines—just turn on and measure.
• Modular Probe Architecture: Quick-change probe capability allows rapid swapping between tactile probing and high-speed optical scanning without recalibration.
• Rugged Shop-Floor Design: Built with carbon-fiber structure to resist thermal expansion and withstand harsh manufacturing environments.
• Audited & Calibrated: Fully inspected, tested, and pre-calibrated to guarantee ISO-compliant measurement precision out of the box.

Common Applications

• Quality Control & First-Article Inspection: Verify complex geometries, castings, and machined parts against CAD models to catch defects early.
• Reverse Engineering: Capture high-density surface point clouds on existing parts or prototypes to generate accurate 3D CAD files.
• In-Process Shop-Floor Metrology: Bring the inspection tool directly to the CNC machine or assembly line, minimizing transit time for massive or heavy components.
• Tooling & Fixture Alignment: Precisely inspect, align, and calibrate manufacturing jigs, welding fixtures, and stamping dies.

The all-in-one solution for portable 3D measurement

The flagship of the Absolute Arm range, the Absolute Arm 7-Axis delivers tactile probing and non-contact scanning in a uniquely ergonomic package. It’s the clear choice for high-end portable measurement applications. With usability central to its design, this is an articulating measuring arm that can’t be beaten when it comes to ease of movement and measurement. All this adds up to a more productive arm that delivers high-accuracy results more quickly and easily than ever before.

Upgraded performance

The latest version of the 8th generation Absolute Arm offers improved accuracy, stability, and repeatability. The system's feedback keeps users aware of key factors that affect measurement results, such as vibration, displacement, tilt, and temperature.

Probing and scanning

High-accuracy probing and high-end scanning from the Absolute Scanner AS1 or AS1-XL. The Absolute Arm 7-Axis is a multifunctional tool that improves productivity through enhanced usability and versatility.

IP54 certification

The first portable measuring arm with an IP54 rating, functional in temperatures up to 45°C, perfect for challenging conditions.

Configurable wrist

The wrist features an OLED display, interchangeable grips, probe and scanner mountings, and control buttons for efficient one-handed operation.

Advanced materials

Constructed with high-tech carbon-fiber tubes for strength and stability, ensuring reliable accuracy anywhere.

ISO certification

Probing accuracy certified to ISO 10360-12, full scanning accuracy certified to ISO 10360-8 Annex D with an Absolute Scanner AS1, AS1-XL, or RS5 Laser Scanner.
