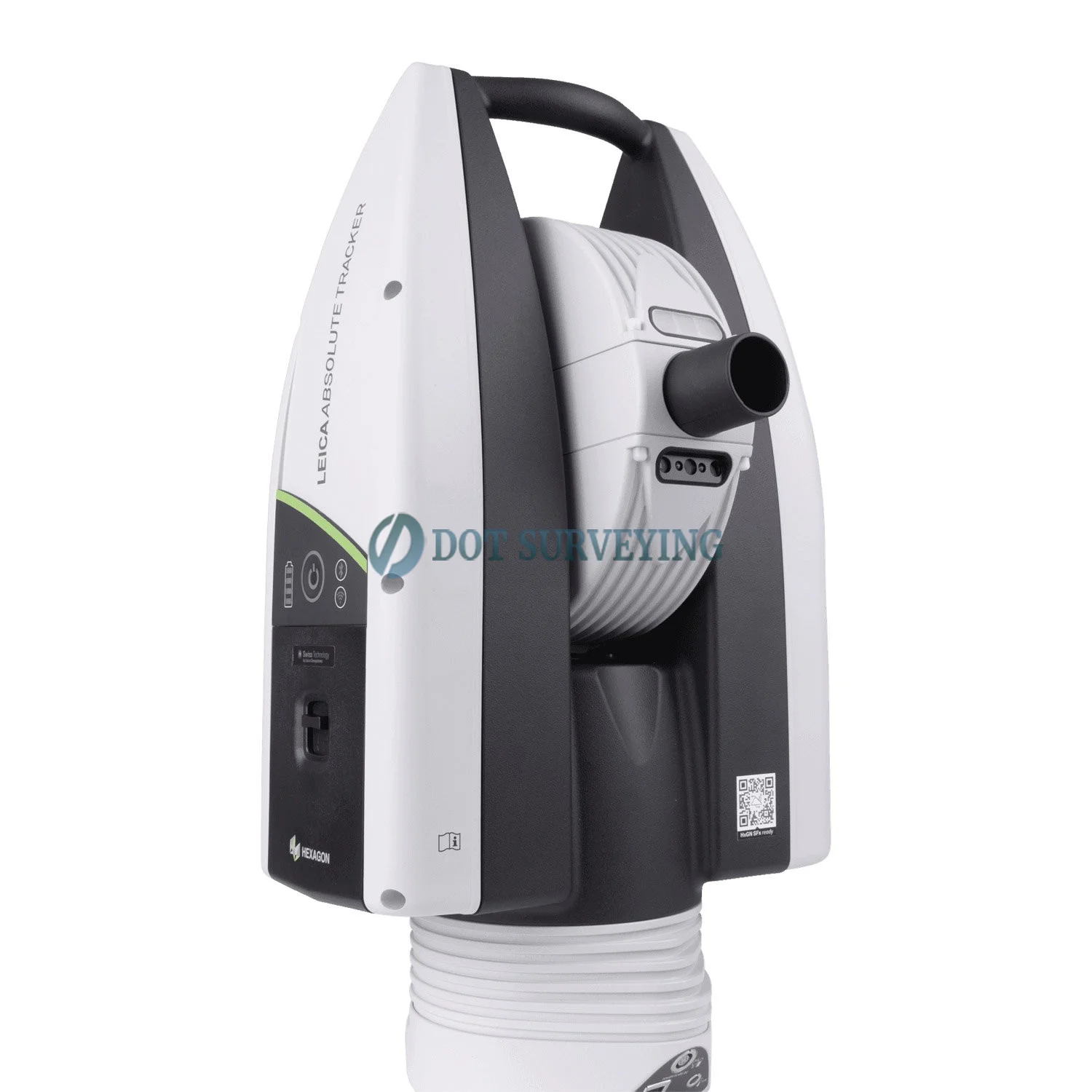

Leica AT500 Absolute Tracker
Description
Leica Absolute Tracker AT500 comes with 1-year metrology software license, B-Probe plus dedicated handheld probing tool. Ready for every manufacturing and assembly challenge, absolutely anyone can measure absolutely anything, absolutely anywhere.
Leica Absolute Tracker is fully compliant with ISO 10360-10, the international standard that defines performance evaluation methods for laser tracker measurement. This standard guarantees measurement accuracy and reliability against globally recognized benchmarks, ensuring confidence across a wide range of applications from manufacturing to quality inspection. With performance certified to international standards, the Leica Absolute Tracker is ready to meet even the most demanding global quality requirements.
The Leica Absolute Tracker AT500 makes measurement simple without compromising on portability, productivity and resilience. From transport case to large-scale measurement is just a matter of moments thanks to a hassle-free setup process, while IP54-rated protection and an extended operating temperature range keep the AT500 working under even the most challenging conditions. From reflector measurement at up to 160 metres from the tracker to simplified 6DoF probing functionality, the AT500 is ready for every manufacturing and assembly challenge, no matter the size or location.
- All-in-One Integrated Design: From built-in battery-powered controller unit, integrated wireless connectivity, environmental monitoring and all-day battery power, to HD overview camera and ergonomic carry handle, every need is built in.
- Single-Box Probing System: Just one case contains the lightest and most portable sensor and probe as well as IR remote, with various transportation case options for full flexibility.
- Smart Connectivity: Built-in WiFi with true access-point functionality delivers single-user operation through a simple PC setup and remote control.
- Bluetooth Control: The AT500 Connect app offers quick settings adjustments over Bluetooth direct from a smartphone or tablet (Android and iOS).
- PowerLock: Automatically re-establishes interrupted line of sight within a wide field of view with no user interaction required.
- Continuous Measurement: Continuous time and distance measurement mode, with measurement sampling rate at 100 Hz.
- Entry-Level Probing: Cableless, battery-powered Leica B-Probeplus with customisable hidden-point capability.
- IP54 Certification: The IEC-certified sealed unit guarantees ingress protection against dust and other contaminants, enabling effective measurement in even the harshest environments.
- MeteoStation: Integrated environmental unit monitors conditions including temperature, pressure and humidity to compensate for changes and ensure accurate measurements regardless of external factors.
- Orient-to-Gravity: Enables measurement with the Z-axis aligned to gravity, ideal for levelling and alignment tasks.
- Battery Power: Independent hot-swappable battery power supply allows for quick and easy cable-free setup and all-day wireless operation.
- Operating Temperature: Wide operating temperature range of -15 to +50° Celsius.
- Measurement Volume: Ultra-large measurement volume of up to 320 metres (ø), with minimum measurement distance less than 0.8 metres.
- Hexagon Guarantee: Full 24-month factory warranty and guaranteed ten years of serviceability.
- Real-Time Asset Management: The AT500 is fully compatible with Metrology Asset Manager, the leading solution for asset performance management in the world of Industry 4.0. Based on data collected in real-time and reported through a centralised user-friendly dashboard, Metrology Asset Manager has been optimised for the management of laser tracker-based systems and is an essential part of every smart manufacturing strategy.
