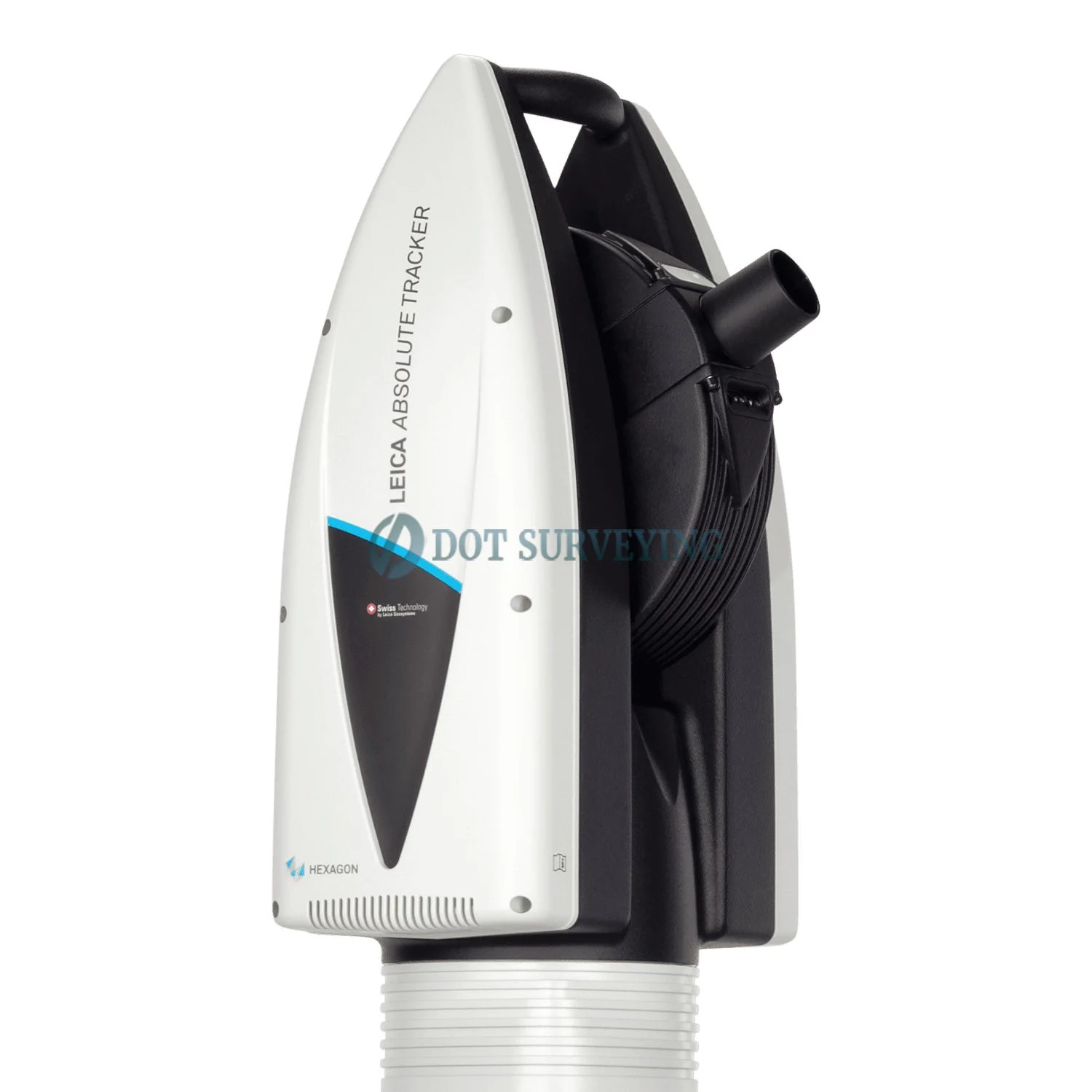

Leica Absolute Tracker ATS600

Description

Leica Absolute Tracker ATS600 is the ultimate in high-speed inspection for large parts and surfaces. Representing the next level of 3D inspection, it combines traditional laser tracker reflector measurement functionality with the pioneering technology of metrology-grade contactless measurement direct from the laser tracker. No accessories such as reflectors, targets or handheld scanners are required to mediate the measurement – this is the world’s first ever direct scanning laser tracker.

Leica Absolute Tracker ATS600 is a laser tracker system with direct scanning capability. Direct scanning distance range up to 60 m, reflector distance range up to 80 m.

The system consists of:

• Leica Absolute Tracker ATS600 (576971)
• Calibration Certificate Metrology Gold (878571)
• MTC51 AT930/960/ATS600 Transport Container (576891)
• ATS Controller (576981)
• MPS21 Power Supply Unit (576873)
• MCS11 Sensor Cable - 1.5 m (576885)
• AT Quick Release Mount incl. Mandrel (576338)
• MCA18 External Temperature Sensor - 2 m (576888)
• Red Ring Reflector (RRR) - 1.5” (575784)
• MAC87 Reference Sphere - d=90 mm (576947)
• MSI26 Universal Stand Fixture (576895)
• MAT33 Optical Cleaning Kit (576898)
• Protective Sensor Cover (827057)
• 24-month warranty*
• HxGN SFx | Asset Management PRO - 12-month subscription
• GPS Location Add-on for SFx Asset Management - 12-month subscription**

Intelligently combining this ground-breaking technology with traditional reflector measurement delivers significant reductions in inspection process times and opens entirely new applications to the world of metrological quality control, in areas that have never before been practical. This is high-accuracy measurement, alignment and analysis on a whole new scale.

Leica Absolute Tracker ATS600 is a Metrology grade large volume scanner, combining scanning with tactile measurements seamlessly

The ATS600 transforms your large-scale measurement by combining point-by-point precision with advanced laser scanning.

Delivering metrology-grade accuracy, it integrates seamlessly into your workflows for fast, non-contact measurements, without the need for targets or post-processing.

Customisable scanning speeds and user-defined areas make it a flexible solution for diverse applications.

• Streamline inspections: Speed up your large-scale inspections with customisable scanning speeds, direct scanning up to 60 metres, and user-defined areas using selective scanning technology.
• Improve accuracy: Achieve metrology-grade precision with the Scanning Absolute Distance Meter (ADM), delivering measurements accurate to 300 microns without you needing a reflector.
• Boost efficiency: Simplify your workflows with one-user operation, built-in WiFi, and seamless integration into metrology software, giving you a shorter setup time and faster results.

Features and benefits

The Scanning Absolute Distance Meter (ADM): The ATS600’s Scanning ADM helps you to accurately measure points in 3D space with or without a reflector. This allows single-point laser tracker measurements and surface digitisation from up to 60 metres away, achieving flexible and contactless measurement.

• Variable point density: Customise the density of the surface measurement grid to balance speed and data quality. This gives you full control over the level of detail required for your application, improving efficiency without compromising accuracy.
• Selective scanning: Focus only on the areas you need to measure by defining the target area with the integrated Overview Camera or CAD data. This eliminates unnecessary data collection and simplifies the scanning process.
• Operator independence: No target or operator is needed at the measurement point, reducing costs and making the ATS600 ideal for automated processes. Its fully independent operation streamlines workflows and improves efficiency.
• Metrology workflow: The ATS600 works seamlessly with all standard metrology software, integrating into your existing workflows for easy data analysis and processing.
• PowerLock: The PowerLock function automatically re-establishes an interrupted line-of-sight during reflector measurements, ensuring continuous tracking without you having to interact with it.
• Combined measurement: Combine direct scanning for surfaces and reflector measurements for features in the same process. This dual capability gives you accuracy with the flexibility for large-scale inspections and assembly tasks.
• Battery power: Hot-swappable battery power makes the ATS600 portable and cable-free, permitting you a quick setup in any location, which is perfect for large-scale worksites.
• WiFi connectivity: Built-in WiFi adds to the portability of the ATS600, enabling easy control and operation by a single user without additional equipment.
• IP54 certified: The ATS600’s IP54-certified sealed design protects against dust and contaminants, ensuring reliable performance in harsh environments.
• MeteoStation: An integrated environmental monitor records temperature, pressure, and humidity, ensuring accurate measurements even in challenging conditions.
• Orient to Gravity (OTG): The OTG function aligns the Z-axis to gravity, making it ideal for levelling and alignment tasks like building and inspecting tool and jig fixtures.
• All-in-one design: Weighing less than 15 kilograms, the ATS600 is highly portable and securely fits into a single small flight case, making it easy to transport.

Where the ATS600 fits in:

The ATS600 combines direct scanning and reflector measurement, bridging the gap between traditional point-by-point systems and advanced scanning solutions. It excels at inspecting large surfaces, enabling fast, contactless measurements with precision up to 300 microns. Perfect for industries requiring efficient, scalable measurement.

Key benefits of the range:

Delivering trustworthy data for critical applications

Accuracy: Delivering trustworthy data for critical applications with:

• Precise distance measurements and gravity orientation.
• ISO 17025-certified calibration for compliance with global standards.

Reliability: Consistent performance in tough environments:

• IP54-certified construction for protection against dust and water
• Integrated environmental monitoring and dependable support services.

Portability: Flexible measurement anywhere:

• Lightweight, battery-powered, and wireless for easy transport and setup.
• All-in-one storage with compact flight cases.

Productivity: Streamlined workflows to boost efficiency:

• Automation-ready with intuitive interfaces and software compatibility.
• PowerLock technology to maintain tracking during interruptions.

Leica Absolute Tracker ATS600 Specifications
