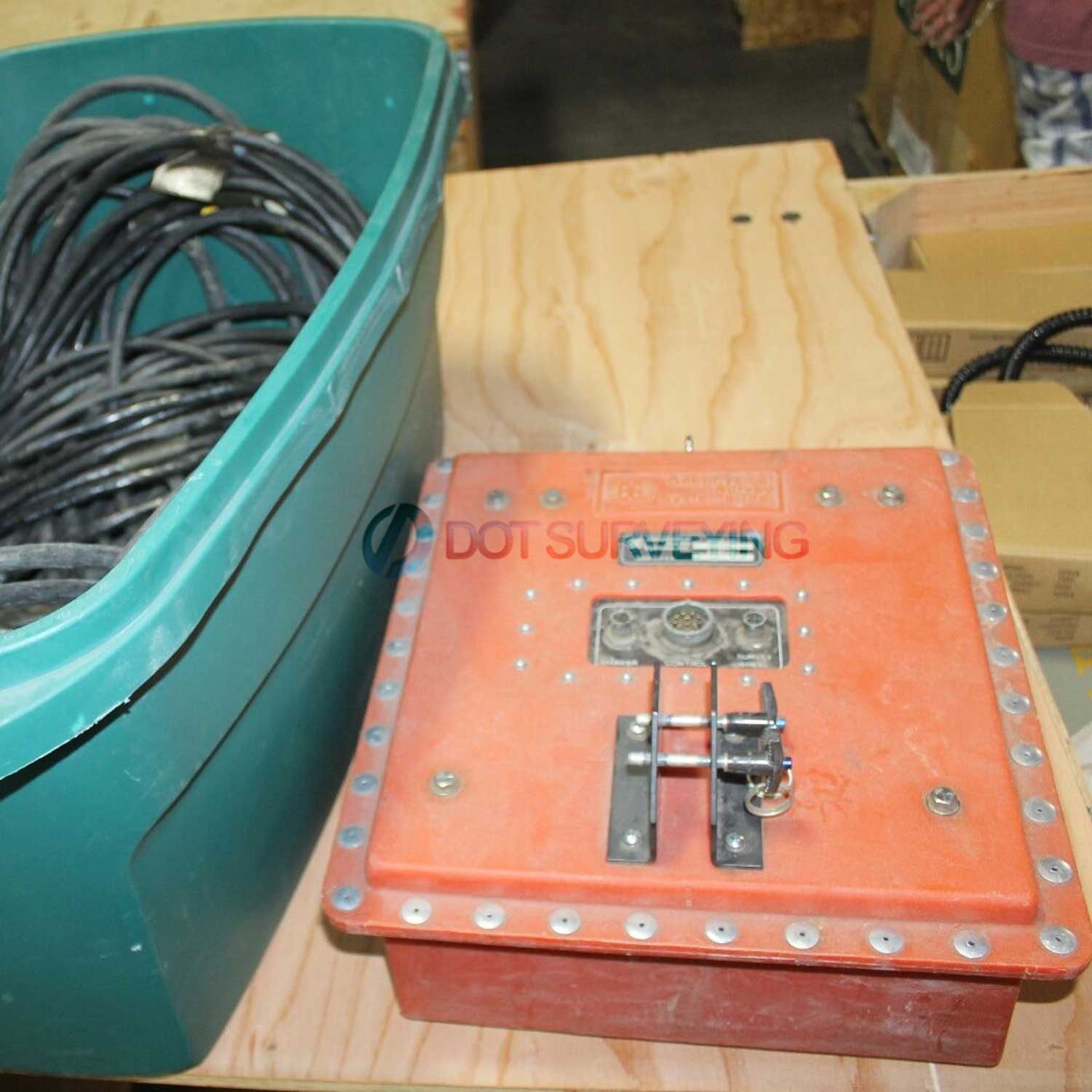

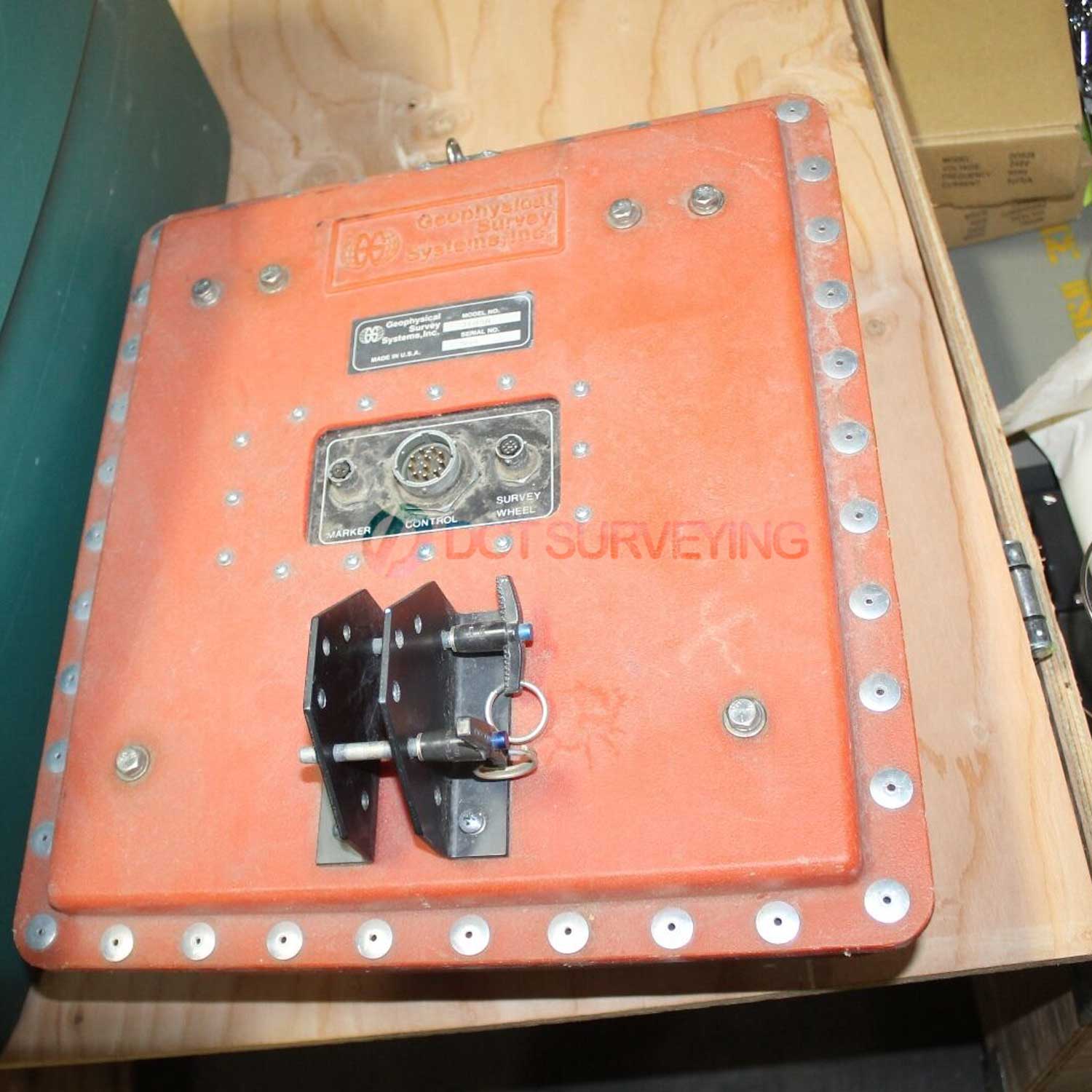

GSSI 3102A 500 MHz Antenna

GSSI 3102A 500 MHz Antenna for sale, used in excellent condition to providing high-quality GPR equipment subsurface mapping, archaeology, engineering, and environmental investigations.

Whether you're working in construction, archaeology, or environmental studies, the GSSI 3102A 500 MHz Antenna can provide the insight you need to make informed decisions and carry out your projects efficiently.

The GSSI 3102A 500 MHz Antenna

The GSSI 3102A 500 MHz Antenna is a high-performance geophysical antenna designed for use with Ground Penetrating Radar (GPR) systems. It operates at a frequency of 500 MHz, making it ideal for medium-depth subsurface imaging. The antenna is used to detect a wide range of underground structures, including pipes, cables, utilities, and geological features, with remarkable accuracy and resolution.

This antenna is part of the GSSI 3000 Series, a line known for its durability and versatility in field conditions, offering unmatched performance in various environmental conditions.

Key Features of the GSSI 3102A 500 MHz Antenna

The GSSI 3102A 500 MHz Antenna is packed with features that make it a go-to choice for professionals in many industries. Some of its key features include:

• 500 MHz Frequency: Provides a balance between depth penetration and image resolution.
• High Resolution: Capable of detecting small objects and subtle changes in subsurface structures.
• Lightweight and Portable: Designed for ease of use in the field.
• Durability: Built to withstand tough environments, ensuring longevity and reliability.
• Versatility: Compatible with a wide range of GSSI GPR systems.

Applications of the GSSI 3102A 500 MHz Antenna

The GSSI 3102A 500 MHz Antenna is widely used across different industries for subsurface detection. Below are the primary applications of this antenna:

• Concrete Inspection: The antenna is commonly used to inspect concrete structures, helping to locate reinforcing steel, voids, and other structural anomalies. It provides detailed images that assist engineers in evaluating the integrity of concrete slabs, pavements, and floors.
• Utility Location: The 500 MHz frequency of the GSSI 3102A makes it ideal for locating buried utilities such as water pipes, electrical cables, and gas lines. By using GPR systems equipped with this antenna, professionals can efficiently map underground utilities, minimizing the risk of accidental damage during construction or excavation.
• Archaeological Surveys: Archaeologists use the GSSI 3102A antenna to non-invasively locate artifacts and historical structures buried underground. The high-resolution imaging capabilities allow for precise mapping of subsurface features, which is crucial for preserving historical sites.

Technical Specification

How the GSSI 3102A Works

The GSSI 3102A 500 MHz Antenna works by emitting electromagnetic waves into the ground and measuring the reflection time of these waves as they encounter different subsurface materials. The radar waves bounce back when they hit an object or a change in the ground’s composition, and the antenna records these reflections to create a detailed image of the subsurface.

This process allows professionals to locate objects and identify anomalies without having to dig, making it a non-destructive testing method. The GPR system displays the data in the form of a radargram, a visual representation of the underground structure.

Benefits of Using the GSSI 3102A 500 MHz Antenna

There are several benefits to using the GSSI 3102A 500 MHz Antenna, making it an essential tool for professionals involved in subsurface mapping.

Non-Destructive Testing: It allows for inspections and assessments without the need for excavation or physical intrusion.

Accuracy: Provides high-resolution, accurate subsurface images that help locate objects and identify potential issues.

Time and Cost-Efficient: Reduces the need for time-consuming and expensive digging by providing accurate data upfront.

Safe: Reduces the risk of damaging underground utilities or structures during construction projects.

Versatile: Suitable for a wide range of applications, from utility mapping to archaeology.
