GSSI SIR-4000 GPR 400 MHz Antenna 3-Wheel Cart

Name: GSSI SIR-4000 GPR 400 MHz Antenna 3-Wheel Cart
Brand: GSSI
SKU: sku-89
Price: 8500 USD
Availability: InStock
Rating: 5 (35 reviews)

Sale GSSI SIR-4000 GPR 400 MHz Antenna 3-Wheel Cart, fully inspected and serviced by GSSI authorized to make sure it is in full working order and works flawlessly with GSSI working standards

$8,500

Sale GSSI SIR-4000 GPR 400 MHz Antenna 3-Wheel Cart, clean unit and everything is in excellent condition. Fully inspected and serviced by GSSI authorized to make sure it is in full working order and works flawlessly with GSSI working standards.

This is complete GSSI SIR-4000 GPR system that can use for many applications such as utility locating or subsurface utility engineering (SUE), or any other near surface ground penetrating radar (GPR) applications.

Package includes;

GSSI SIR-4000
GSSI 400 MHz antenna
GSSI 3-wheel cart
GSSI cables

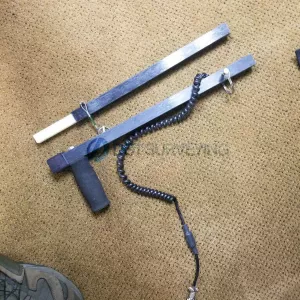

GSSI tow handle
GSSI survey wheel
Shipping cases

The SIR 4000 is GSSI’s first high-performance GPR data acquisition system designed to operate with analog and digital antennas. This evolutionary step allows for true versatility and flexibility by supporting a wide range of users across numerous applications. GSSI SIR4000 GPR data acquisition system designed to operate with analogue and digital antennas, including the latest dual frequency antennas. Other improvements over the SIR3000, which it replaces, include advanced display modes and filtering capabilities for ‘in the field’ processing and imaging.

System Includes

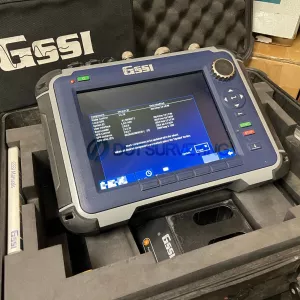

GSSI SIR 4000 Control Unit
Sunshade
2X Lithium-ion batteries
Dual-bay battery charger
Transit case
User Manual
2-year GSSI warranty

Key Specifications

Weight: 10 lbs (4.53 kg) including battery
Operating Modes: Continuous (time) or survey wheel (distance triggered) or point mode
Scan Interval: User-selectable, up to 4000 scans/sec
Transmit Rate: Up to 800 KHz (International) US/Canada and CE rates depend on antenna model

The SIR 4000 is typically used for:

Utility designation
Concrete inspection
Mining and geology
Environmental assessment
Archaeology
Forensics

Accurate and reliable results, The SIR 4000 offers unique collection modules, including Quick 3D, UtilityScan, StructureScan, and Expert Mode for efficient data collection and visualization.

Modular Design, Flexible Solutions: The GSSI SIR 4000 control unit works with all GSSI digital and analog antennas, making it the best unit for all applications and solutions.

Premier Software Features: The SIR 4000 offers a user interface that is easy to navigate and has plug-and-play GPS integration. It also incorporates advanced display methods and filtering capabilities for in-the-field processing.

Specifications

System
Antennas	Compatible with all GSSI antennas
Number of Channels	Records data from 1 single-frequency antenna or 1 dual-frequency antenna
Data Storage	32 GB Flash, 1 GB RAM
Display	Enhanced 10.4” LED display with internal high brightness, Active matrix 1024 x 768 resolution and 32-bit color
GPS	Data logged internally
Display Modes	Linescan, Linescan plus O-scope, Wiggle trace Full 3D, 256 color bins are used to represent the amplitude and polarity of the signal
Environmental Rating	IP65

Data Acquisition
Data Format	RADAN® (dzt)
Output Data Format	32-bit
Scan Interval	User-selectable, up to 400 scans/sec
Number of Samples per Scan	256, 512, 1024, 2048, 4096, 8192, 16384
Operating Modes	Continuous (time) or survey wheel (distance triggered) or point mode
Time Range	0-20,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to +126 dB Number of segments in gain curve is user-selectable from 1 to 8
Standard Real-Time Filters	Infinite Impulse Response (IIR) - Low and High Pass, vertical and horizontal - Finite Impulse Response (FIR) - Low and High Pass, vertical and horizontal
Advanced Real-Time Filters	Migration, Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal
Automatic System Setups	Storage of an unlimited number of system setup files for different survey conditions and/or antenna deployment configurations
Automatic Antenna Recognition	Automatic recognition of Smart Antennas to allow maximum compliant transmit rate

Languages	English, Chinese, Japanese, French, Spanish, Portuguese, Dutch

Operating
Operating Temperature	-20°C to 40°C external (-4°F to 104°F)
Battery	Inspired Energy Ni2040ED, 3 hour runtime (battery life dependent on level of display brightness)
Transmit Rate	Up to 800 KHz (International) US/Canada and CE rates depend on antenna model

Input/Output
Available Ports	Antenna inputs analog and digital (one at a time), DC power input, Serial RS232 (GPS port), Accessory connector, HDMI video output, Ethernet to PC, USB 2.0 port, mini USB
Ethernet	RJ45 100BT Ethernet
USB Host	USB host with external keyboard support, USB flash drive support and USB HUB support

Mechanical
Dimensions	14x10x2.75 in (36x25x7 cm)
Weight	10 lbs (4.53 kg) including battery
Relative Humidity	<95% non-condensing
Storage Temperature	-40°C to 60°C (-40°F to 140°F)

GSSI 400 MHz Antenna Model 50400S

The GSSI 400 mHz GPR Antenna is great for utility locating, ideally suited for shallow (down to 3 m) engineering and environmental applications; locate buried utilities, drums and underground storage tanks; Identify depth and location of objects of all construction materials, i.e., concrete pipes, plastic drums, fiberglass tanks; Identify voids under man-made structures such as roads, runways and buildings.

Center Frequency: 400 MHz
Depth Range: 0-4 m (0-12 ft)
Weight: 5 kg (11 lbs)
Dimensions: 30x30x17 cm (12x12x6.5 in)

The Model 50400S is the most up-to-date model and ideally suited for shallow (down to 3 m) engineering and environmental applications.

Locate buried utilities, drums and underground storage tanks.
Identify depth and location of objects of all construction materials, i.e., concrete pipes, plastic drums, fiberglass tanks.
Identify voids under man-made structures such as roads, runways and buildings.
Excellent ready to working order condition, fully operational included handle, bracket and marker switch

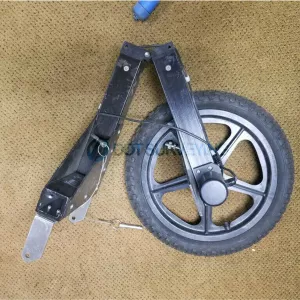

GSSI Radar 3 wheel Rugged Survey Cart

The Model 626 cart is an additional cart option designed for the UtilityScan System. This 3-wheel cart includes a specifically built center positioned bracket to hold the UtilityScan system chassis. The 626 cart is best suited for uneven terrain and grassy field areas

- Weather resistant design
- Multiple antenna options (2600 MHz to 270 MHz)
- Internal integrated survey wheel encoder
- Removable, 16 inch wheels
- Marking paint can holders
- Compatible with SIR-3000 and SIR-4000 control units
- Dimensions: 30.1 x 47.9 x 41.8 inches (76.4 x 121.6 x 106.1 cm)
- Antenna centerline to front of cart:
- 19 inches (48.3 cm)
- Weight: 58 pounds (26.3 Kg)
- Model 643
- GPS antenna tripod available as add-on
